Fitment:
-
Fit for 14" Handlebar
- Compatible with Harley Touring without /Non-ABS 1996-2006
- Compatible with Electra Glide Classic - FLHTC • 1996-2005
- Compatible with Electra Glide Classic Injected - FLHTC I • 1996-2006
- Compatible with Electra Glide Injected CVO/SE - FLHTCSE • 2004
- Compatible with Electra Glide Injected CVO/SE - FLHTCSE 2 • 2005
- Compatible with Electra Glide Standard - FLHT • 1995-2006
- Compatible with Electra Glide Standard Injected - FLHT I 2003-2006
- Compatible with Electra Glide Ultra Classic - FLHTCU 1996-1999
- Compatible with Electra Glide Ultra Classic Injected - FLHTCU I 1996-2006
Specifications:
- Item: Extended Length Non-ABS Hydraulic Front Brake Line, Throttle and Idle Cable and Clutch Cable Kit
- Used On: 14" Handlebar (Non-ABS)

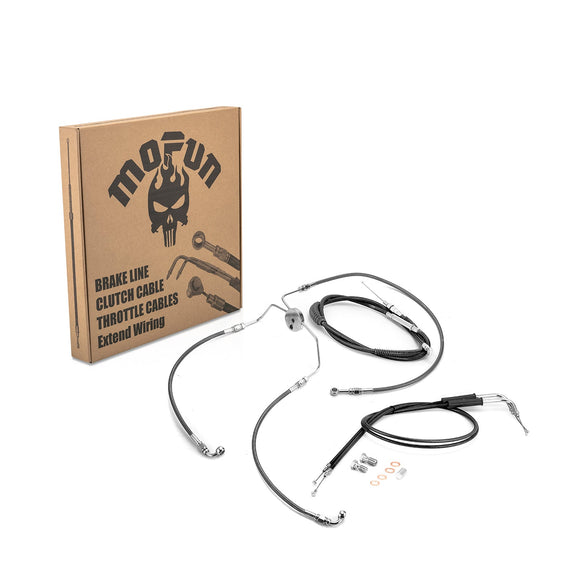

- Color: Chrome / Black
- Brake line Inner tube material: Teflon (PTFE,Temperature resistance from -70°C to 260°C)
- Throttle and Idle Cable, Clutch cable Inner Tube Material: Steel inner conduit, Inner PE liner
- Outer tube material: Polished Stainless steel preparation
- Outer transparent tube material: PVC

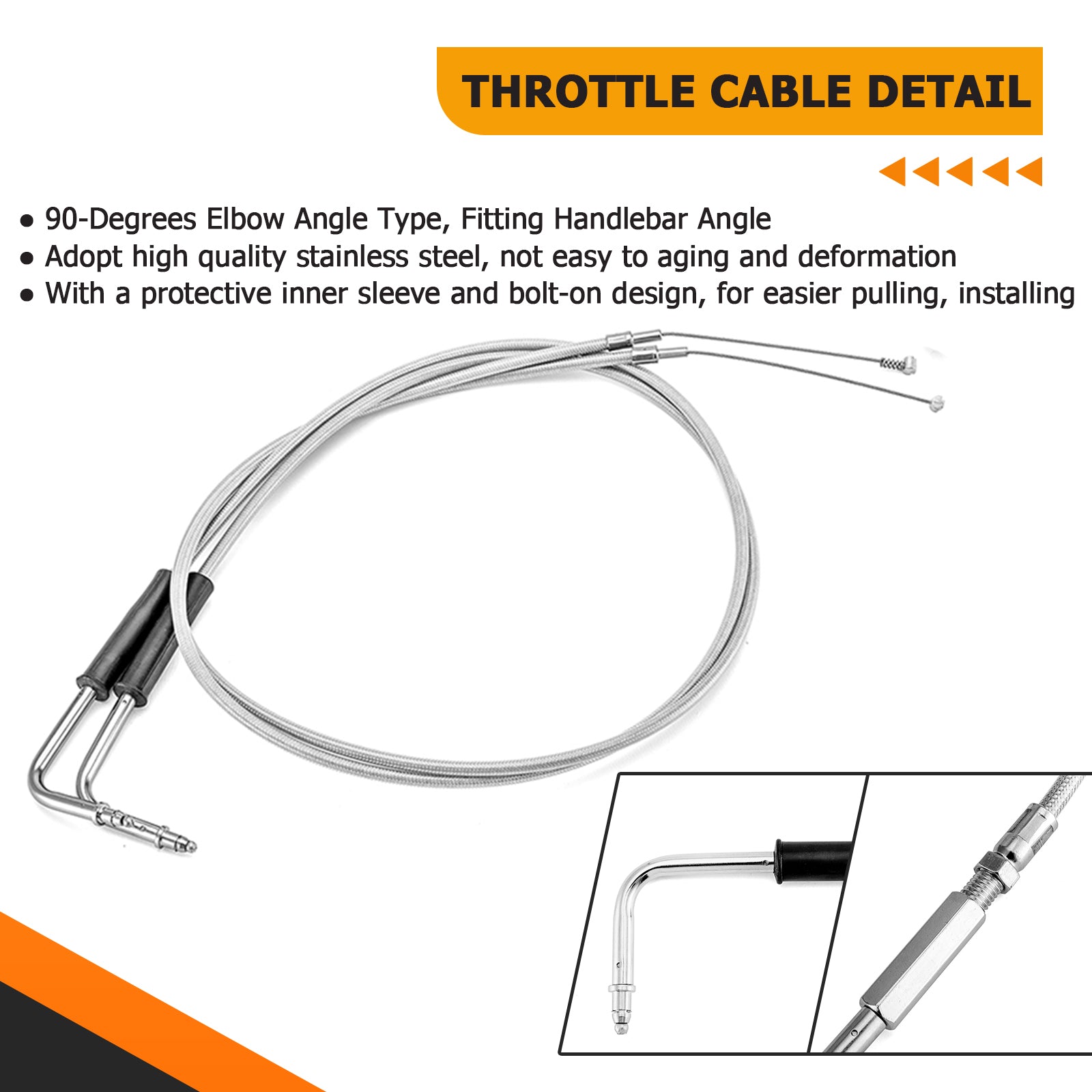

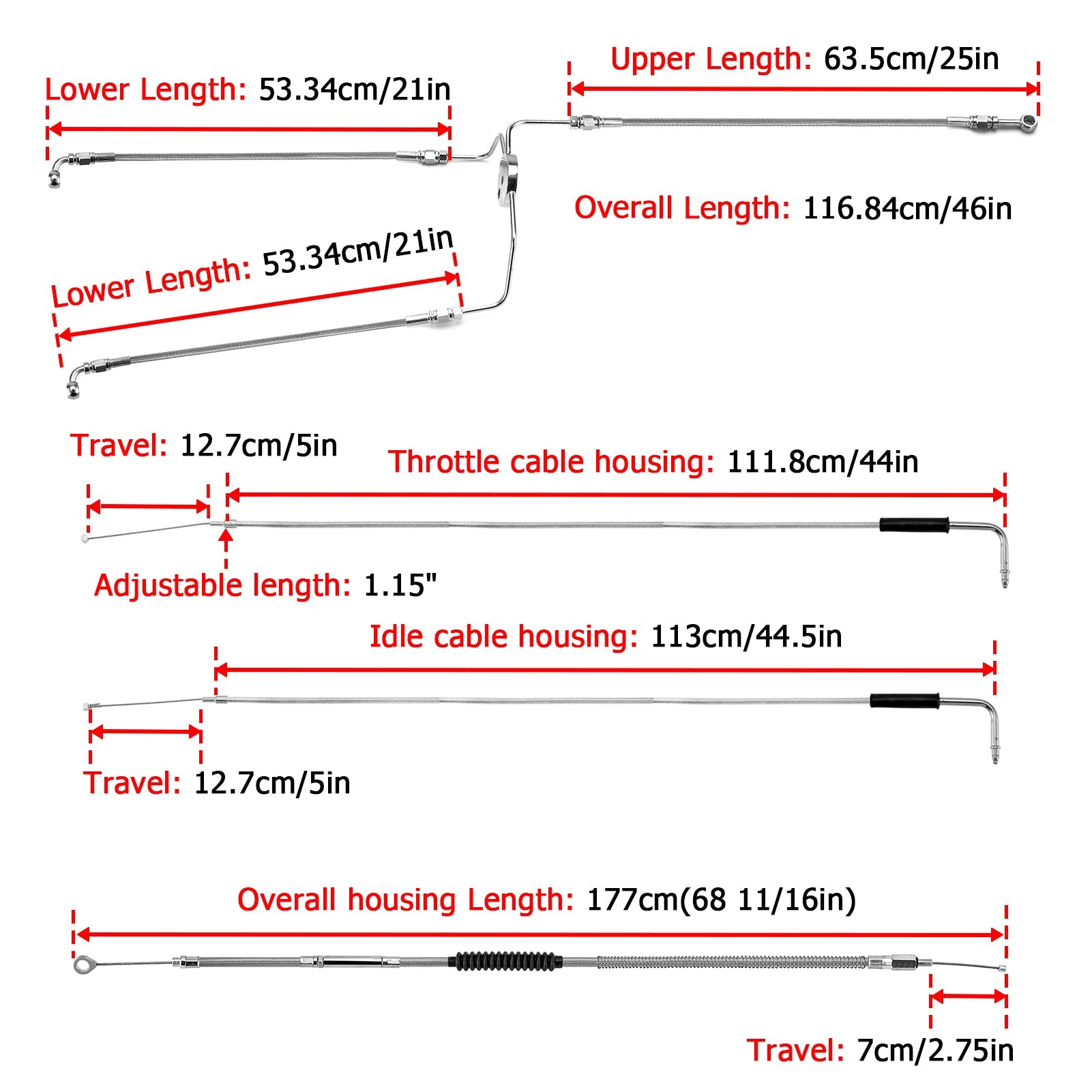

Throttle and Idle Cable Specifications
Throttle cable Length: 44" (1118mm)
Idle cable Length: 44.5" (1130mm)
Replace for Throttle and Idle Cable Part Number: #56328-96

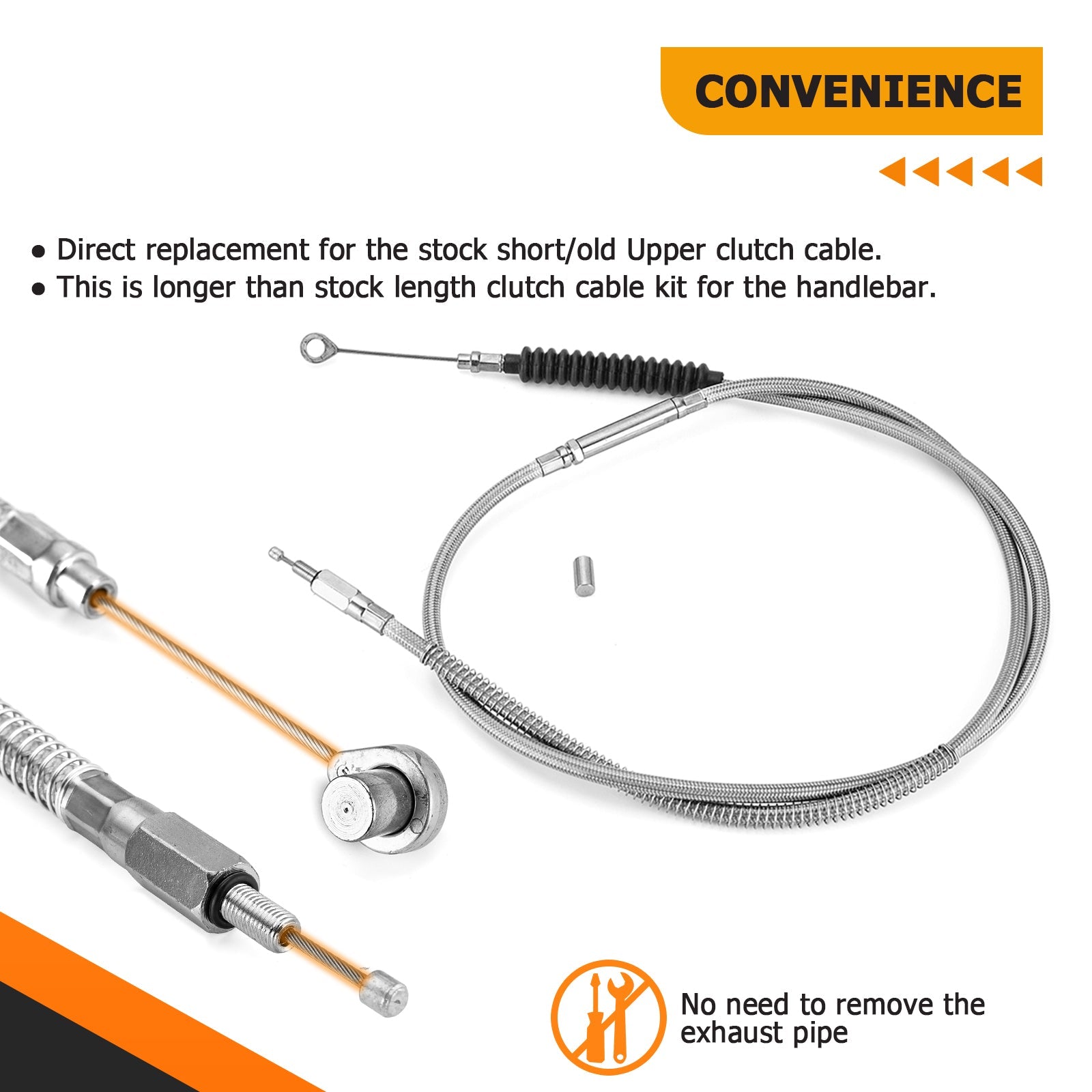

Clutch cable Specifications
Overall Length: 68 11/16" (1770mm)
Travel Length: 2.75" (69.85 mm)
Replace for Clutch Cable Part Number: #38630-88
Non-ABS Hydraulic Front Brake Line Specifications
Overall Length: 46" (1168.4mm)
Upper Length: 25" (635mm)
Lower Length: 21" (533.4mm)
Replace for Upper Front Brake Line Part Number: #43349-96B
Features:
【Compatibility】
Our cable kit is compatible with Harley Touring Electra Glide without ABS 1996-2006. Please check the detailed fitment list before purchasing.
【Convenience】
This line kit is designed to save you time and hassle when installing handlebar cables and lines,including the Throttle and Idle Cable, clutch and brake as well as the necessary hardware.
【Premium Quality】

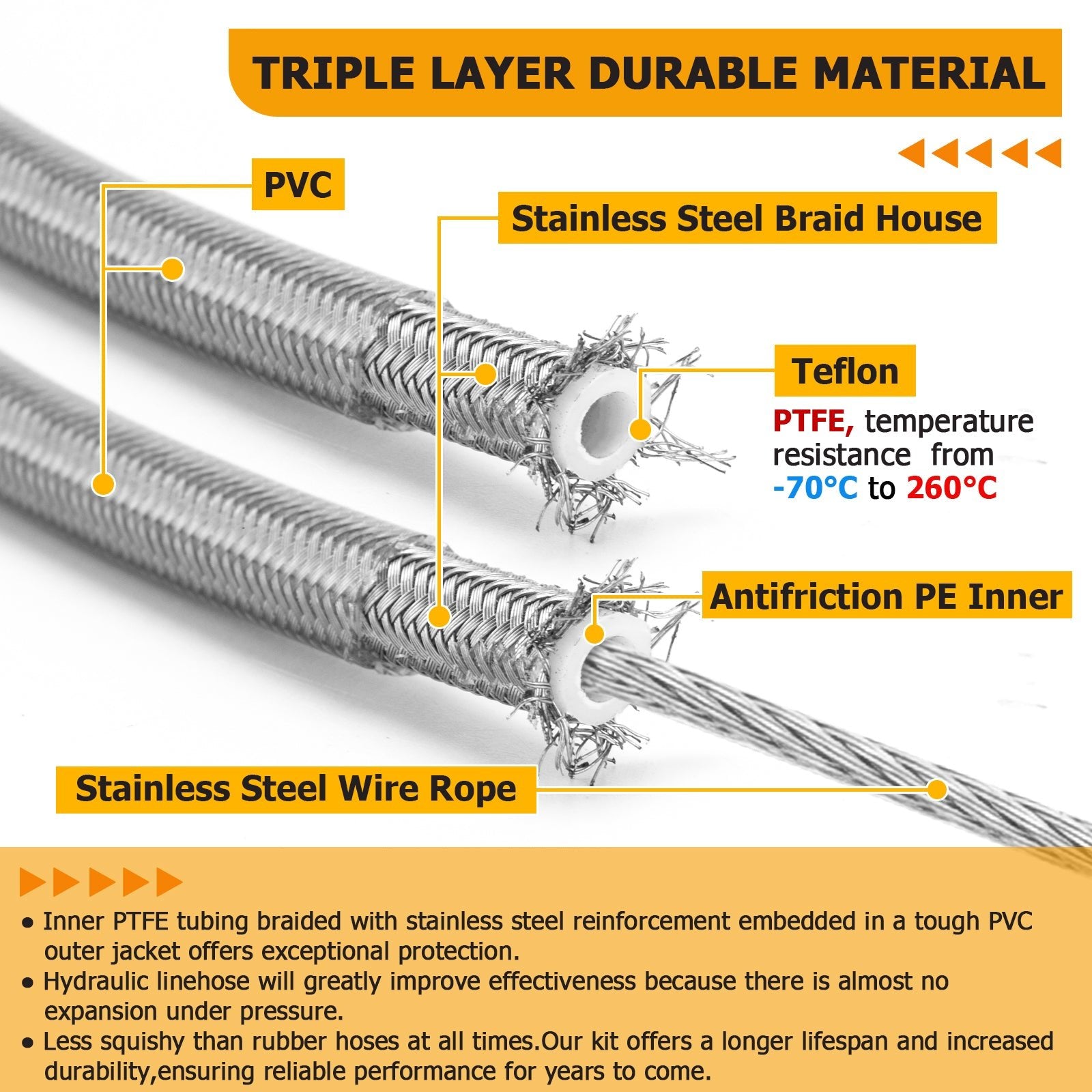

Inner PTFE tubing or PE tubing braided with stainless steel reinforcement embedded in a tough PVC outer protector offers exceptional protection. The PTFE material is resistant to temperatures ranging from -70℃ to 260℃. Our kit offers a longer lifespan and increased durability, ensuring reliable performance for extended use.
【Better Work】
The Hydraulic Line Hose will greatly improve your effectiveness because there is almost no expansion under pressure, less soft than rubber hoses at all times. This advantage reduces braking distances and increases the efficiency of the calipers; Easier and more responsive clutch squeezing
【Easy To Use】

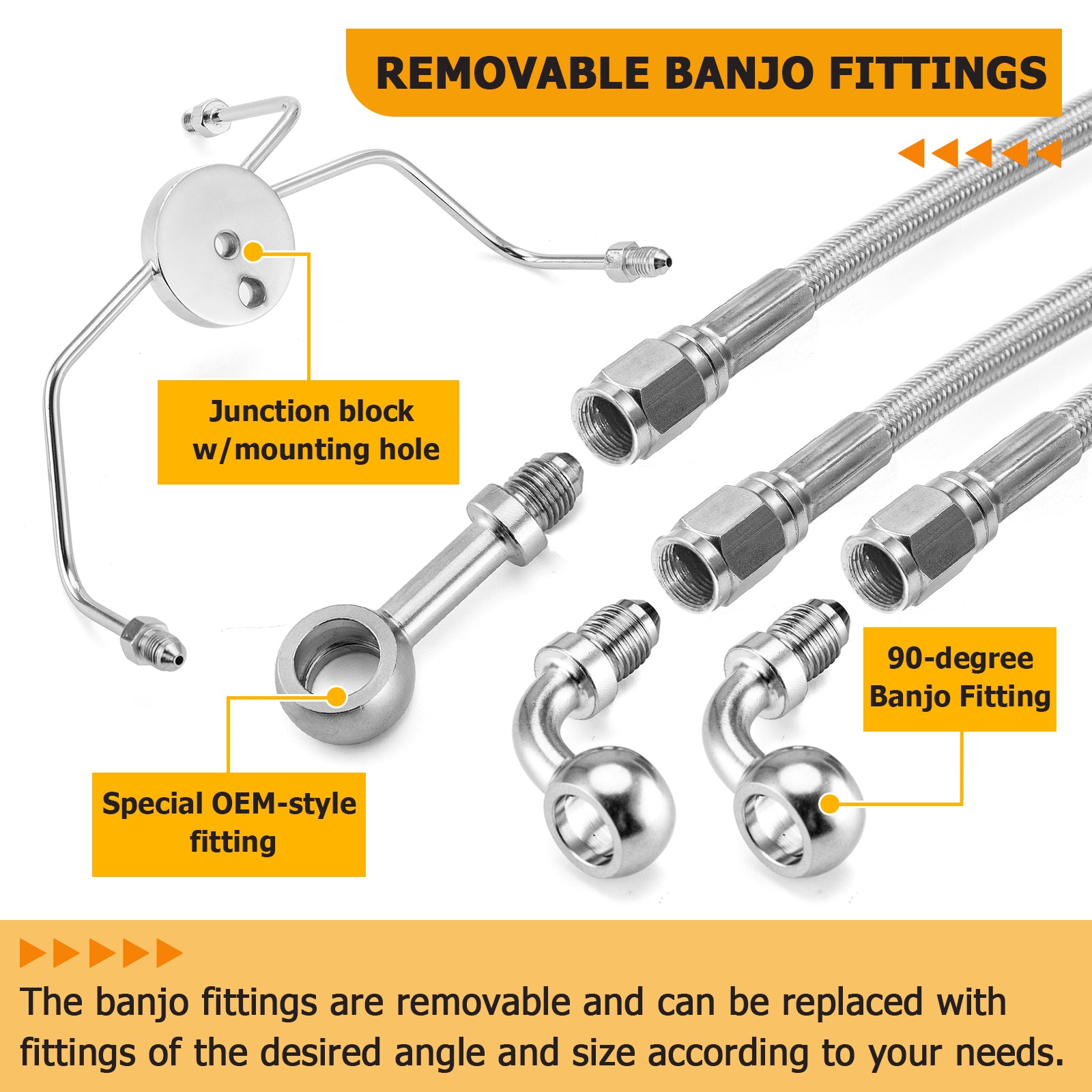

Direct replacement for the stock short/old line. The banjo fittings are removable and can be replaced with fittings of the desired angle and size according to your needs. Brazed manifold construction eliminates leaks, alignment problems, and unattractive threaded connections for a sleek appearance.

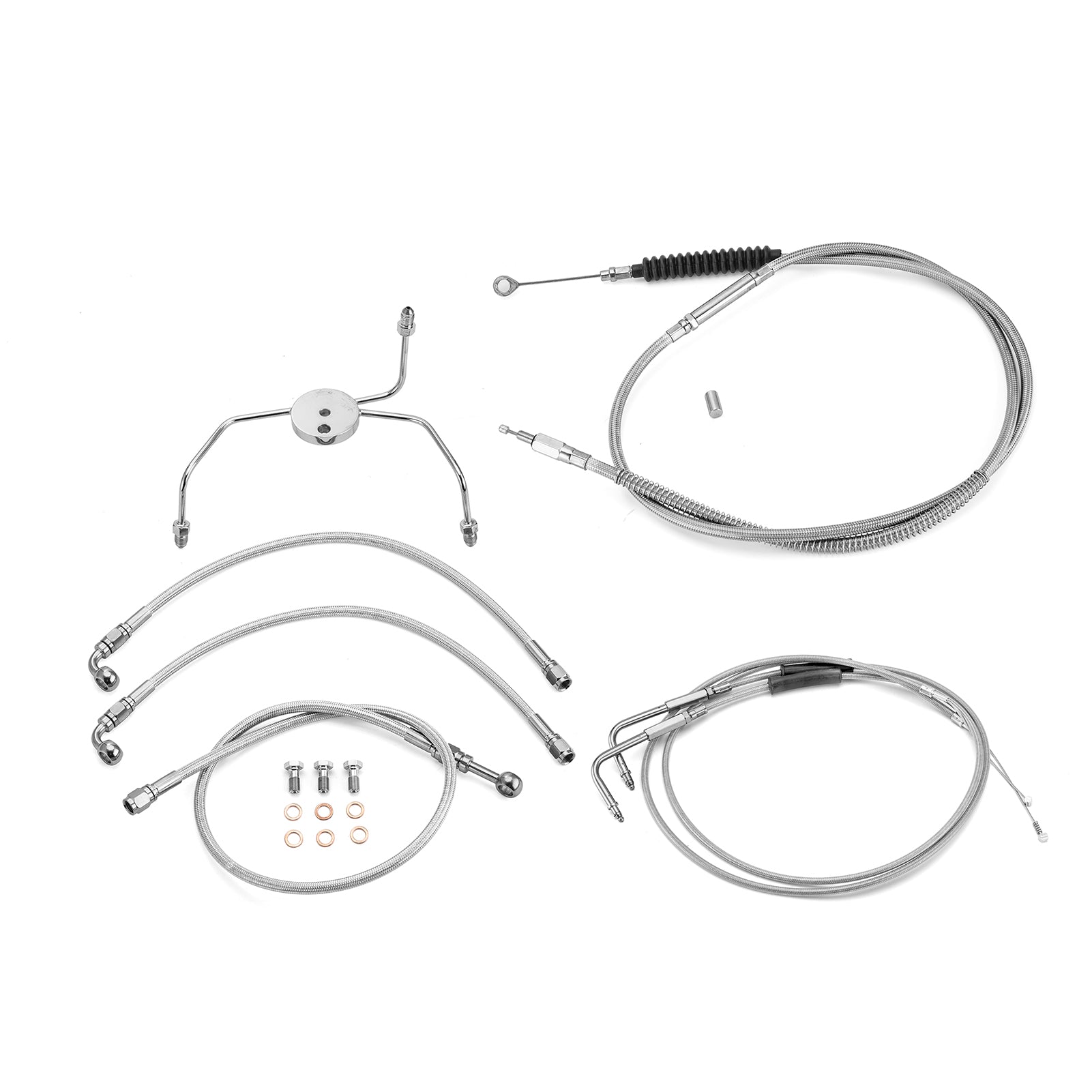

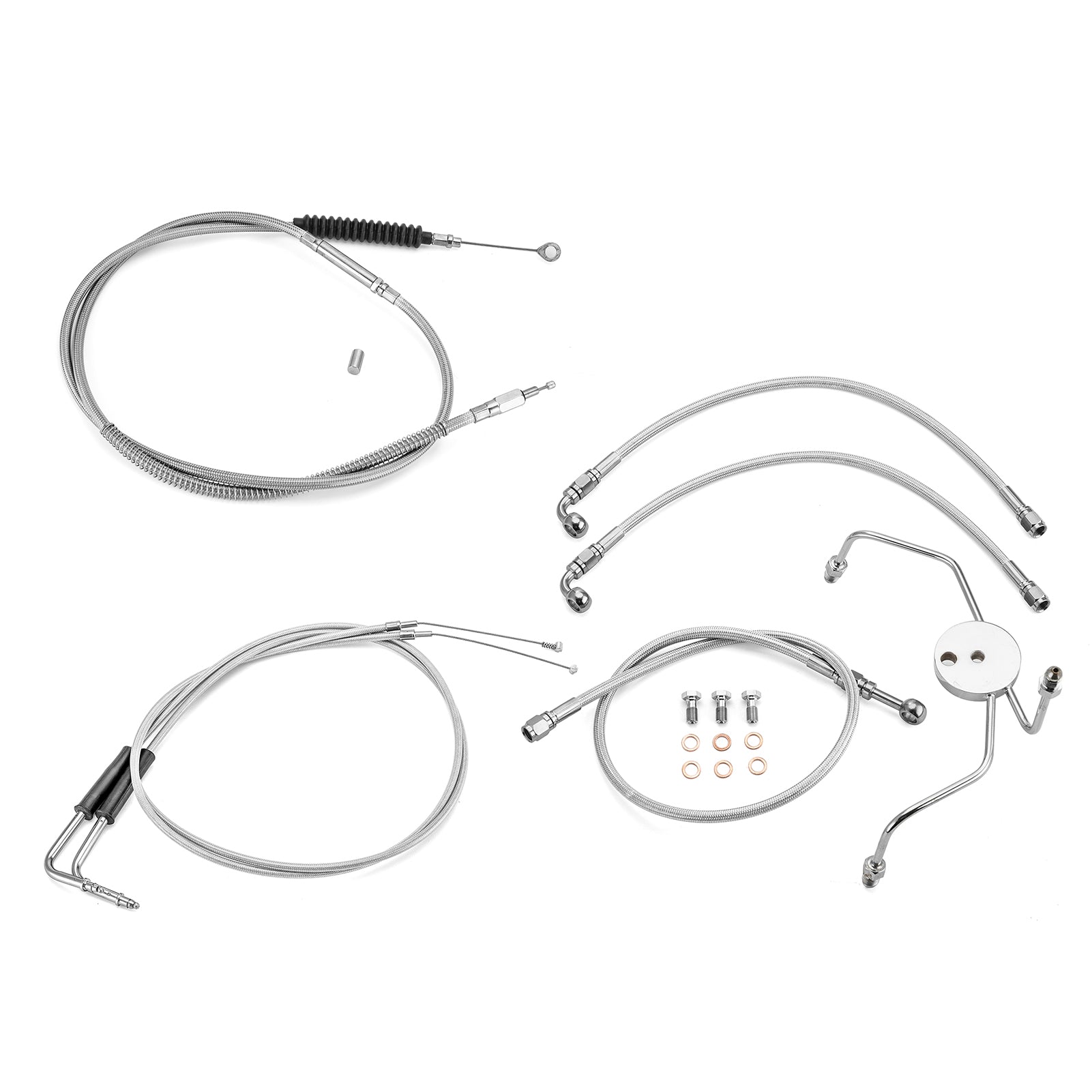

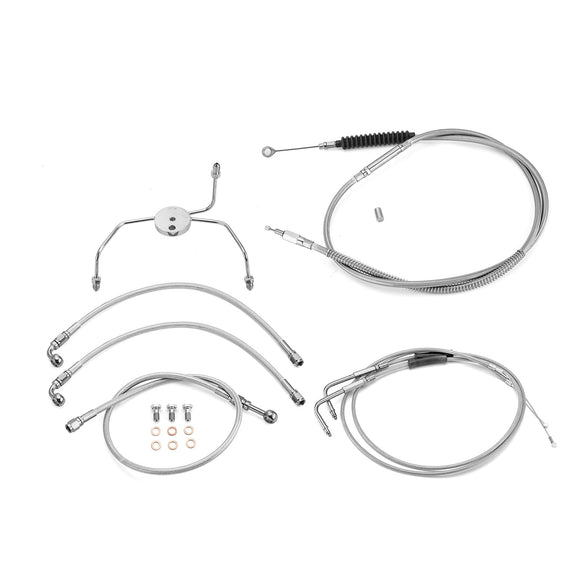

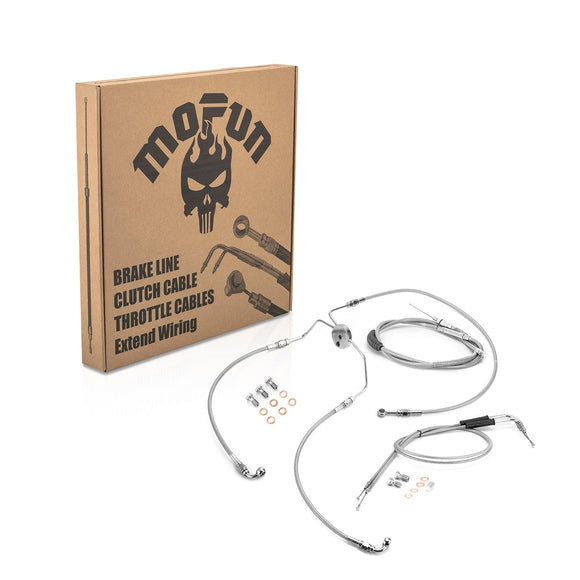

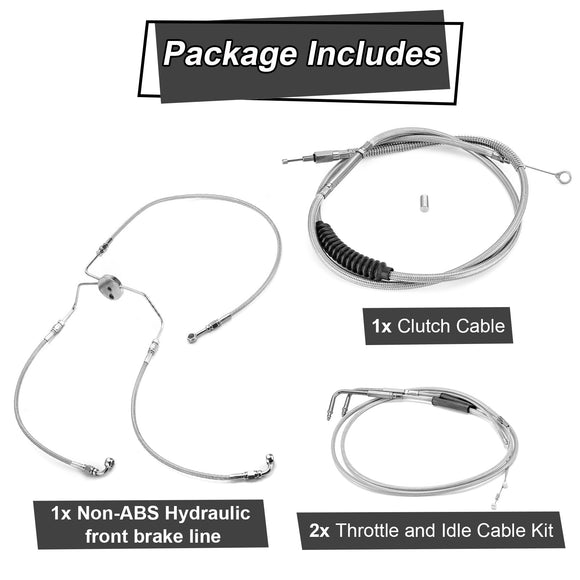

【Package Includes】
1x Throttle cable
1x Idle cable
1x Clutch cable
1x Hydraulic front brake line
Includes necessary mounting hardware
