Fitment:
- Compatible with Dyna Fat Bob - FXDF • 2009-2017
- Compatible with Dyna Fat Bob (EFI) - FXDF • 2008
- Compatible with Dyna Low Rider - FXDL 2014-2017
Total Specifications:
- Item: Extended Length Throttle and Idle Cable,Clutch Cable with Hydraulic Front Non-ABS Brake Line
- Used On: 14"-16" Handlebar(Non-ABS)
- Color: Chrome / Black
- Inner tube material: Teflon(PTFE,Temperature resistance from -70°C to 260°C)
- Outer tube material: Polished Stainless steel preparation
- Outer transparent tube material: PVC
- Condition: Aftermarket Brand New

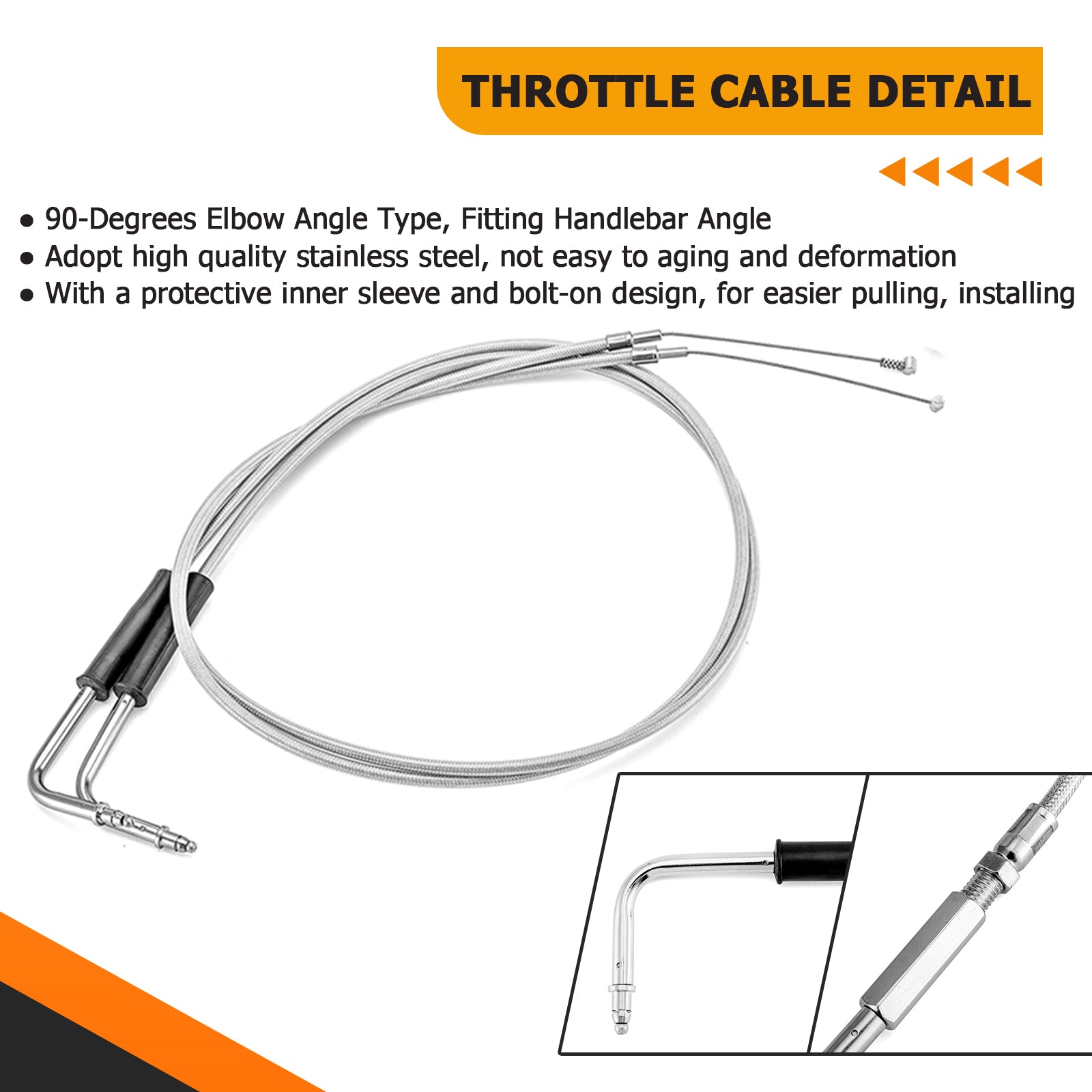

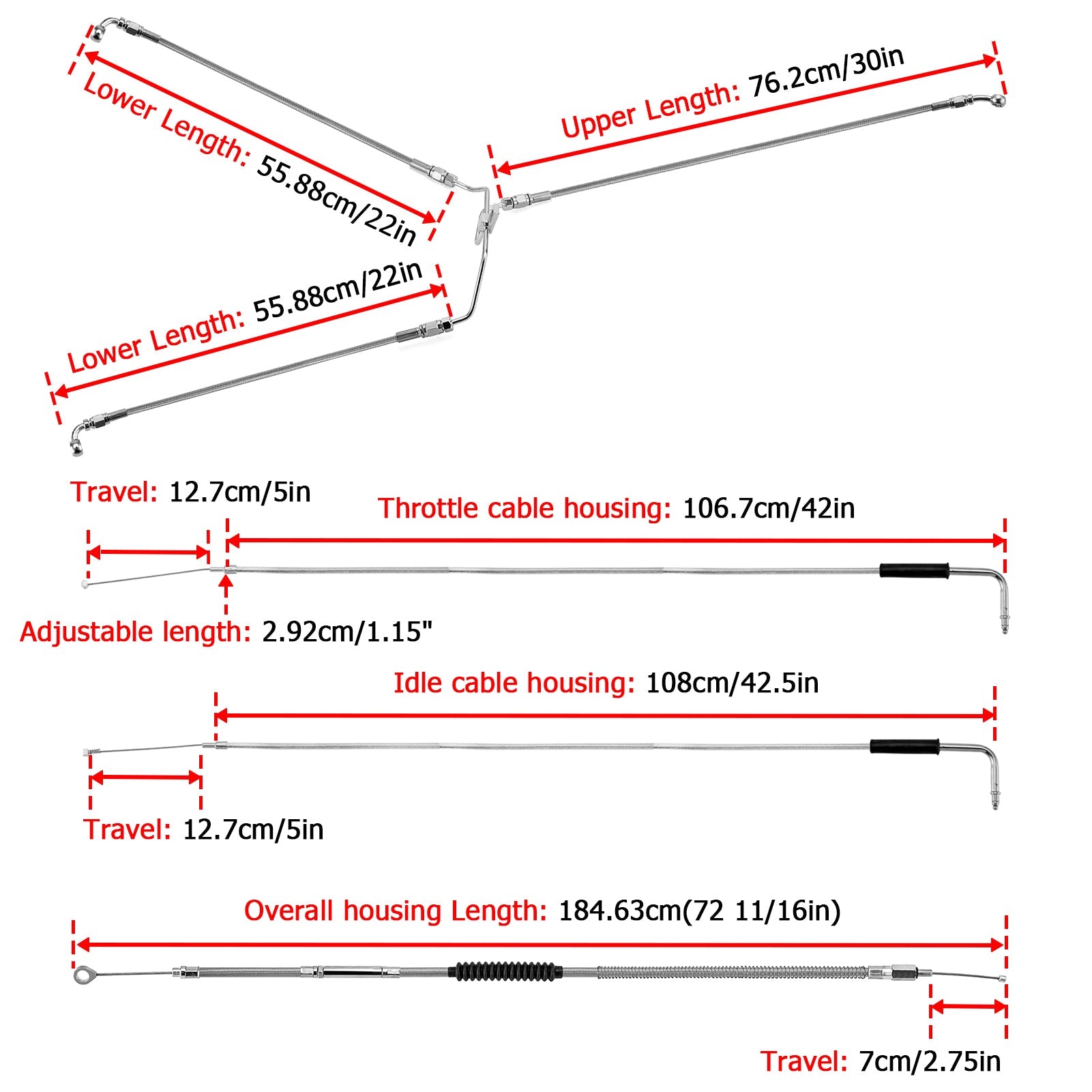

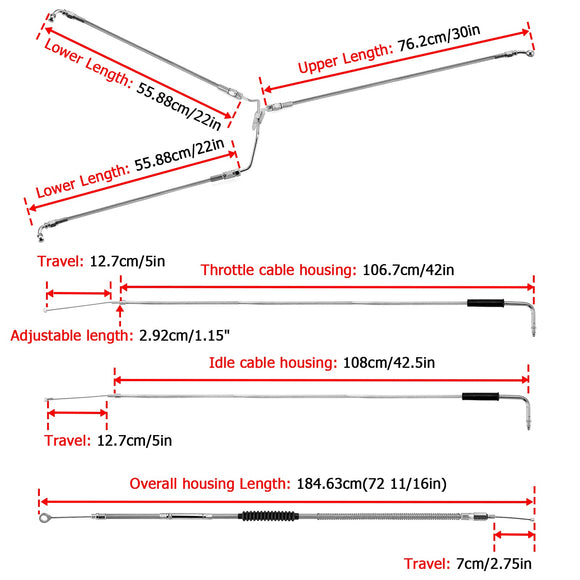

●Throttle and Idle Cable Specifications
Throttle Cable Length: 42"(1067mm)
Idle Cable Length: 42.5"(1080mm)
Travel: 5"(127mm)
Adjustable Length: 1.15"(29.21mm)
Replace for Part Number: #56634-06, 56415-06, 56634-06

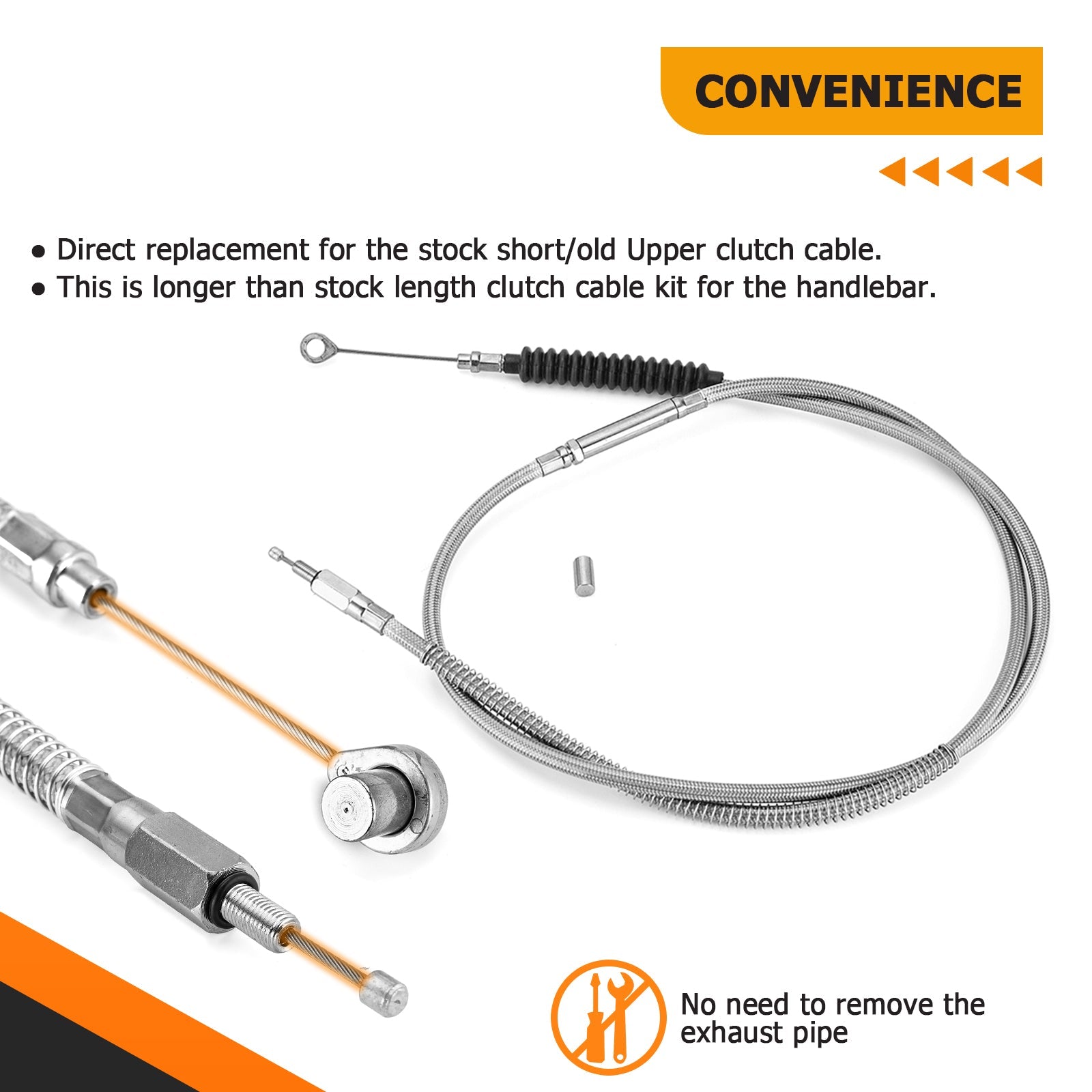

●Clutch cable Specifications
Overall Length: 72 11/16"(1845mm)
Travel Length: 2.75"(69.85 mm)
Replace for Clutch Cable Part Number: #37200083, #38630-88, #38785-08.
●Non-ABS Upper Hydraulic Front Brake Line Specifications
Overall Length: 30"(762mm)
Replace for Upper Front Brake Line Part Number: #42163-08, 41800295
●Non-ABS Lower Hydraulic Front Brake Line Specifications
Overall Length: 22"(558mm)
Travel Length: 2.75"(69.85 mm)
Features:
【Compatibility】Compatible with 2008-2017 Harley Dyna Fat Bob, Low Rider with Non-ABS 14"-16" Handlebar.
Compatible with Dyna Fat Bob - FXDF • 2009-2017
Compatible with Dyna Fat Bob (EFI) - FXDF • 2008
Compatible with Dyna Low Rider - FXDL 2014-2017
Please check the detailed fitment list before purchasing.
【Convenience】This line kit is designed to save you time and hassle when installing handlebar lines, including the brake cables as well as the necessary hardware.

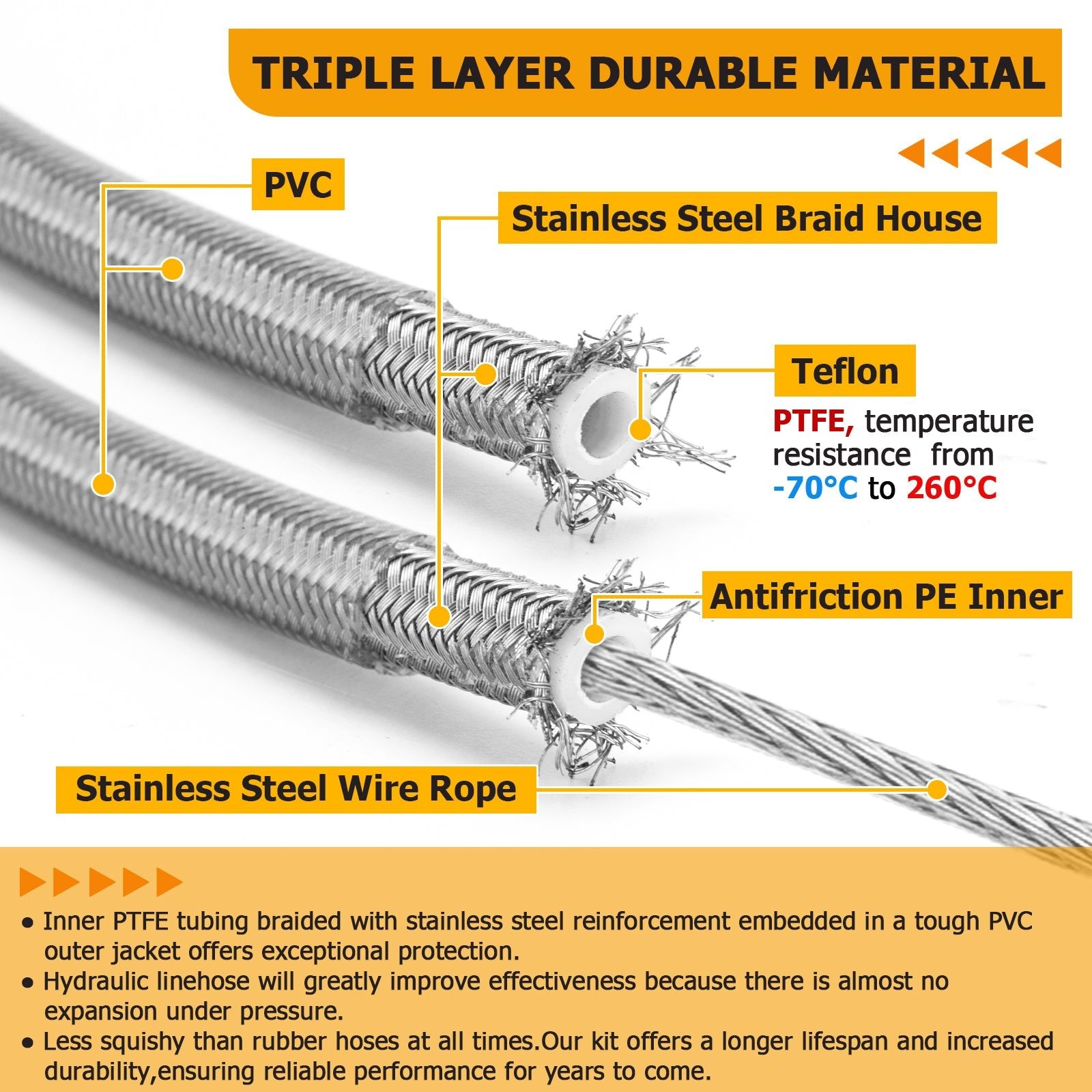

【Premium Quality】Inner PTFE tubing braided with stainless steel reinforcement embedded in a tough PVC outer protector offers exceptional protection. The PTFE material is resistant to temperatures ranging from -70℃ to 260℃. Our kit offers a longer lifespan and increased durability, ensuring reliable performance for years to come.
【Better Work】The hydraulic line hose will greatly improve your effectiveness because there is almost no expansion under pressure, less soft than rubber hoses at all times. This advantage reduces braking distances and increases the efficiency of the calipers;Easier and more responsive clutch squeezing.

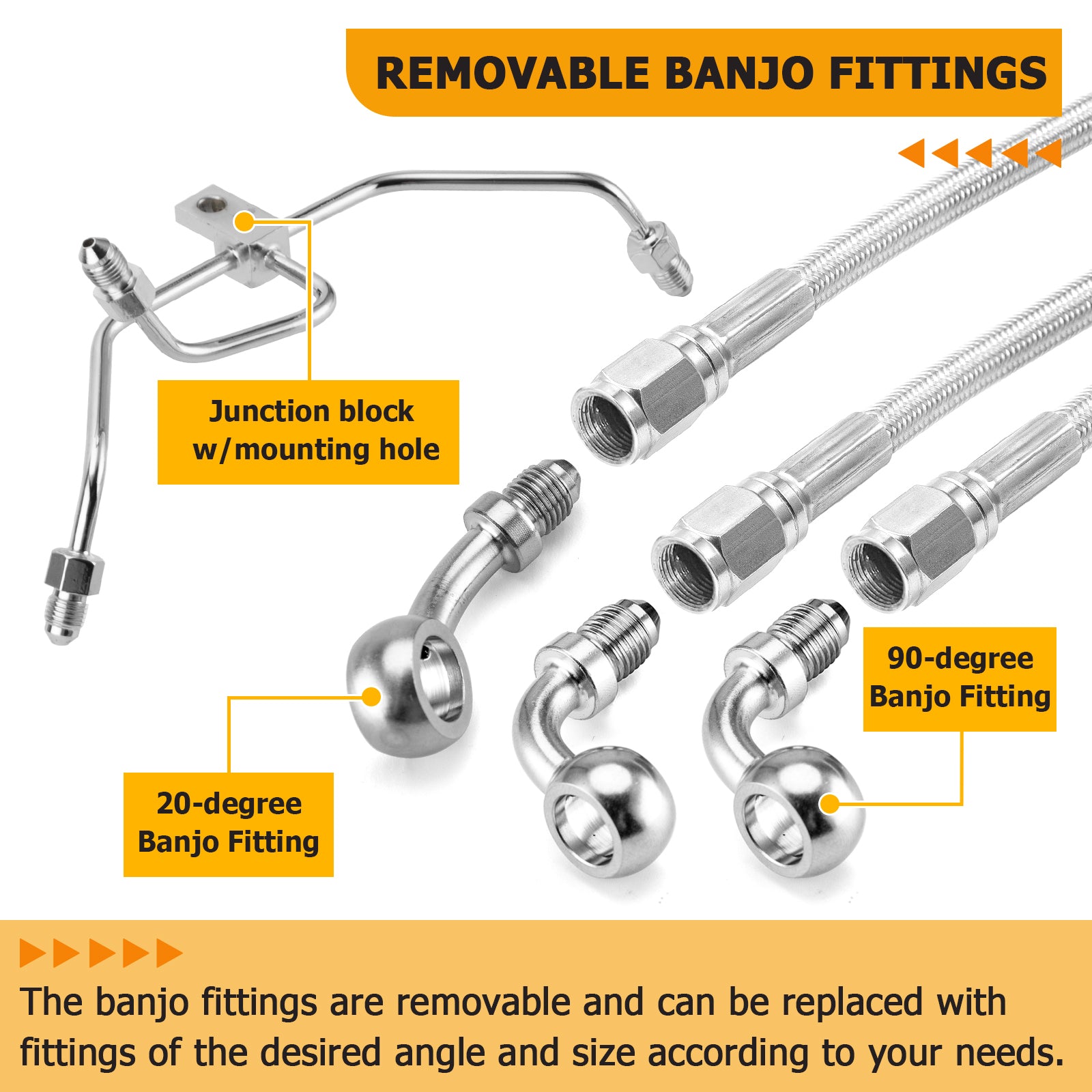

【Installation】Direct replacement for the stock short/old brake line. The banjo fittings are removable and can be replaced with fittings of the desired angle and size according to your needs. Brazed manifold construction eliminates leaks, alignment problems, and unattractive threaded connections for a sleek appearance.

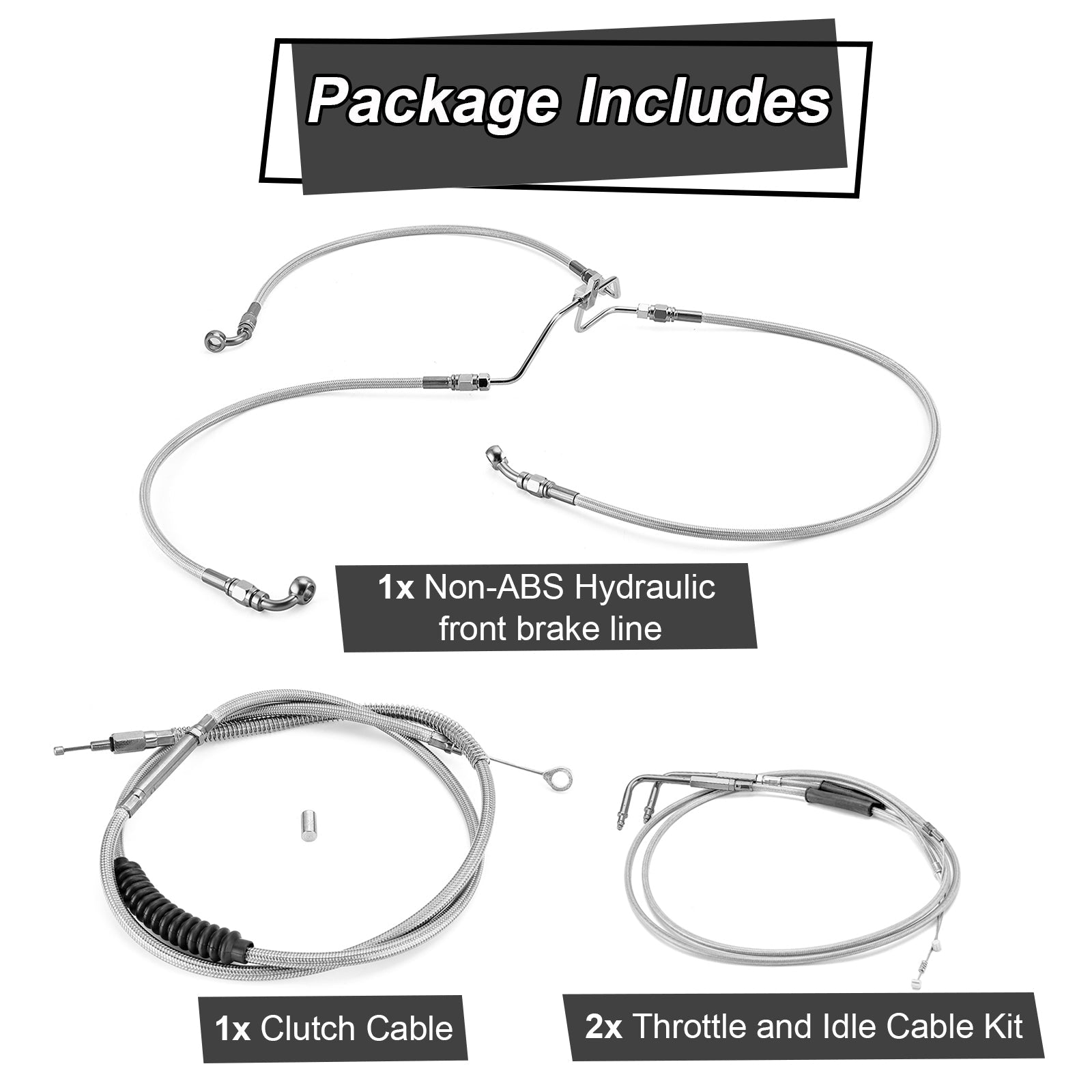

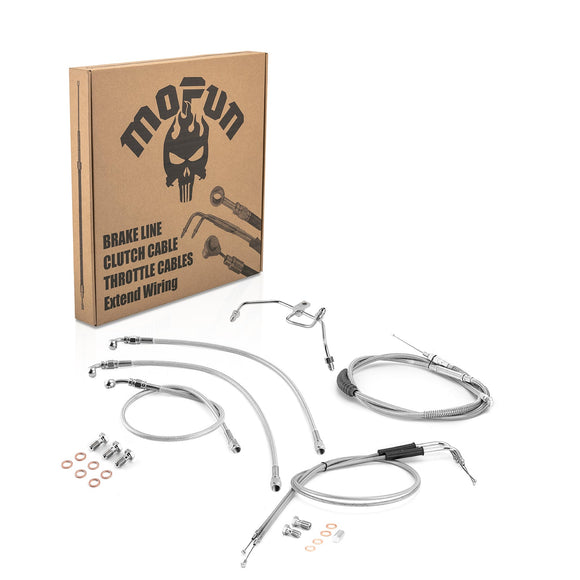

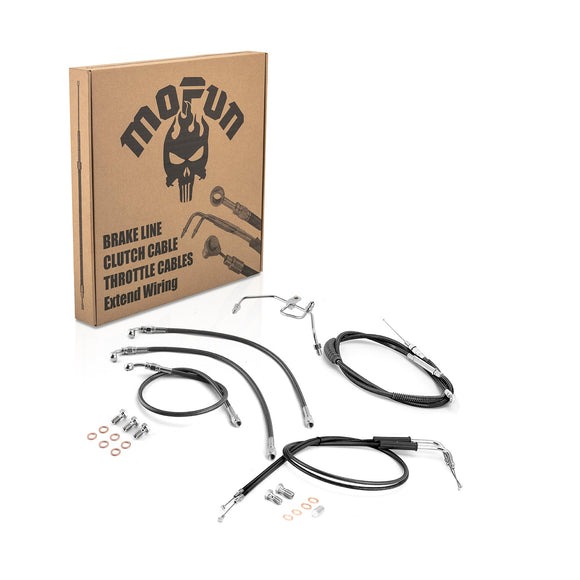

Package Includes:
- 1 x Throttle cable
- 1 x Idle cable
- 1 x Clutch cable
- 1 x stainless steel Non-ABS Upper hydraulic brake line
- 1 x stainless steel Non-ABS Lower hydraulic brake line
- Includes necessary mounting hardware
