2012-2017 Harley Dyna w/ ABS Extended Length Upper ABS Upper Hydraulic Front Brake Line, Throttle and Idle Cable and Clutch Cable Kit (for 12"-14" Handlebar w/ ABS)

Fitment:

• Fit for 12"-14" Handlebar

• 2012-2017 Harley Dyna w/ ABS

• 2012-2017 Harley Dyna Street Bob - FXDB

• 2012, 2014 Harley Dyna Super Glide Custom - FXDC

• 2012-2016 Harley Dyna Switchback - FLD

• 2012-2017 Harley Dyna Wide Glide - FXDWG

Specifications:

• Item: Extended Length Upper ABS Upper Hydraulic Front Brake Line, Throttle and Idle cable, and Clutch cable Kit

• Used On: 12"-14" Handlebar (ABS)

• Color: Chrome or Black (Optional)

• Upper Brake line Inner tube material: Teflon (PTFE,Temperature resistance from -70°C to 260°C)

• Throttle and Idle cable with Clutch cable Inner Tube Material: Steel inner conduit, Inner PE liner

• Outer tube material: Polished Stainless steel preparation

• Outer transparent tube material: PVC

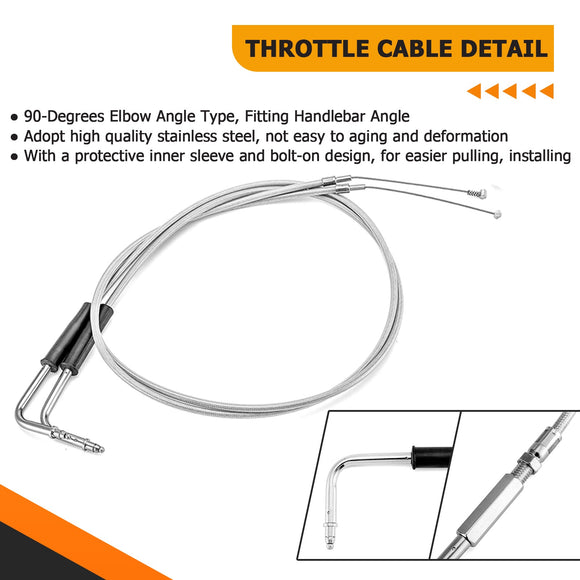

●Throttle and Idle Cable Specifications
Throttle Cable Overall Length: 40" (1016mm)
Idle Cable Overall Length: 40.5" (1029mm)
Replace for Part Number: 56579-02A

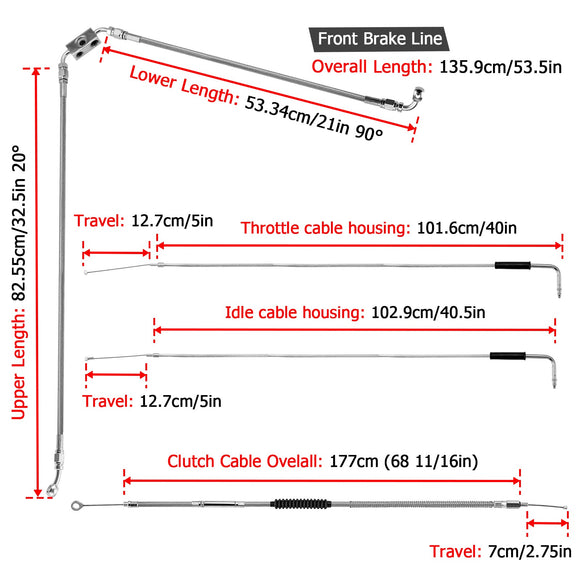

●ABS Hydraulic Front Brake Line Specifications
Overall Length: 53.5" (1358.9mm)
Upper Length 32.5".
Lower Length 21"
Replace for Upper Front Brake Line Part Number: #44084-12A, 42935-12A, 42927-12A, 42940-12A

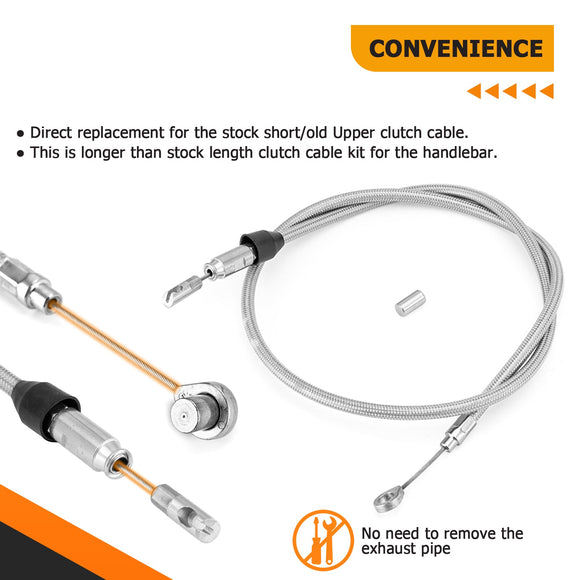

●Clutch cable Specifications
Overall Length: 68 11/16"(1770mm)
Travel Length: 2.75"(69.85 mm)
Replace for Clutch Cable Part Number: #3860787A, 37200219, 3866607, 3866607A, 3866607B, 3866607C, 37200005, 3866708, 3866708A, 37200117, 37200119

Features:

【Compatibility】
Our cable Kit is compatible with 2012-2017 Harley Dyna Street Bob, Super Glide Custom, Switchback and Wide Glide. Please check the detailed fitment list before purchasing.

【Convenience】
This line kit is designed to save you time and hassle when installing handlebar cables and lines, including the TBW, clutch and 4AN connections brake line as well as the necessary hardware.

【Premium Quality】

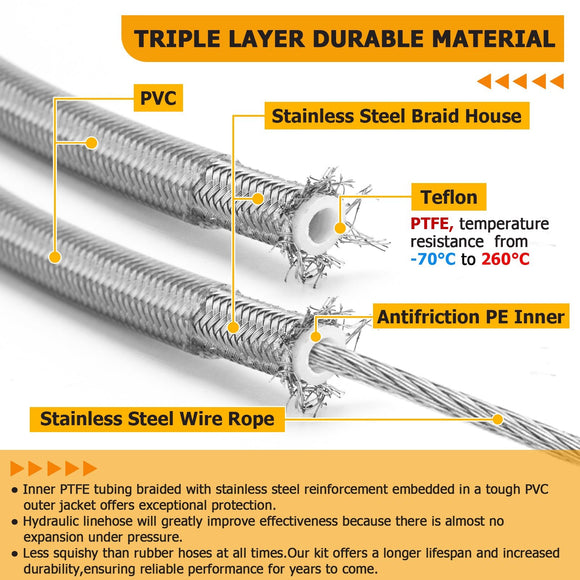

Inner PTFE tubing or PE tubing braided with stainless steel reinforcement embedded in a tough PVC outer protector offers exceptional protection. The PTFE material is resistant to temperatures ranging from -70℃ to 260℃. Our kit offers a longer lifespan and increased durability, ensuring reliable performance for years to come.

【Better Work】
The hydraulic line hose will greatly improve your effectiveness because there is almost no expansion under pressure, less soft than rubber hoses at all times. This advantage reduces braking distances and increases the efficiency of the calipers; Easier and more responsive clutch squeezing

【Easy To Use】

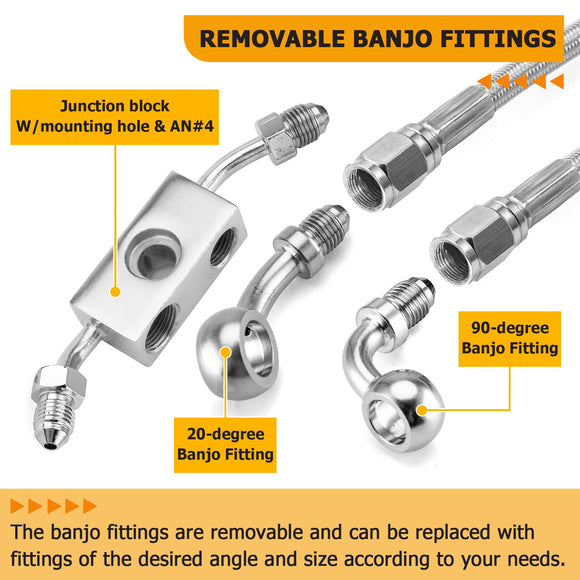

Direct replacement for the stock short/old line. The banjo fittings are removable and can be replaced with fittings of the desired angle and size according to your needs. Brazed manifold construction eliminates leaks, alignment problems, and unattractive threaded connections for a sleek appearance.

【Note】The brake cable does not include the cables for the ABS end; it only includes the cables and connectors from the handlebar to the brake caliper. For the two cables at the ABS end, it is recommended to use the OEM cables.

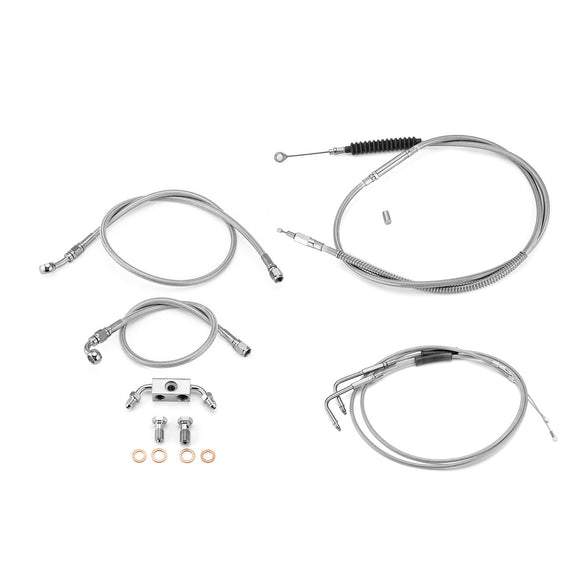

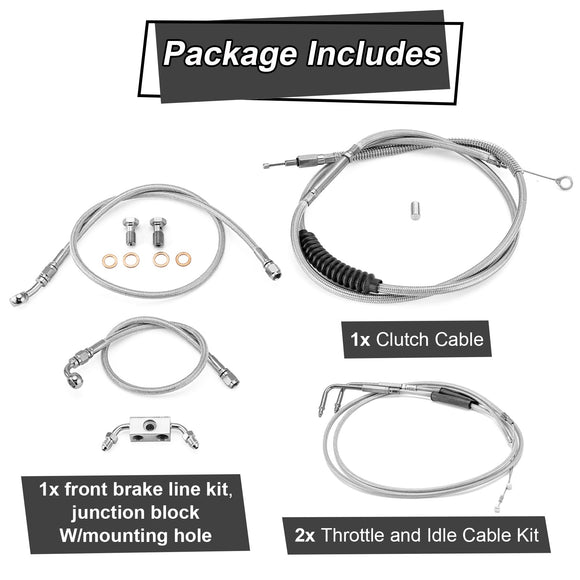

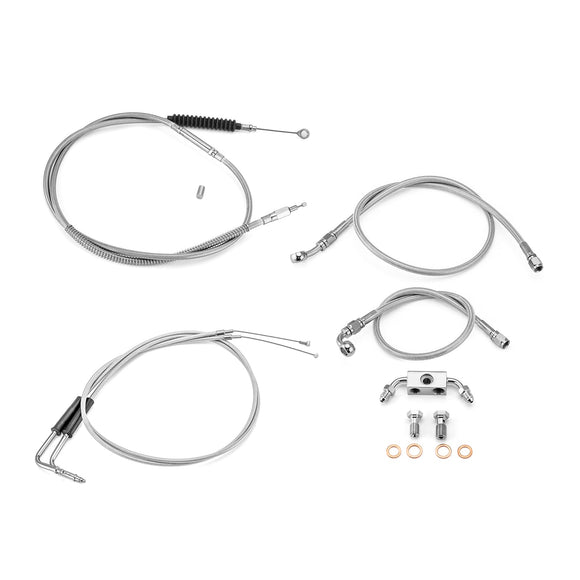

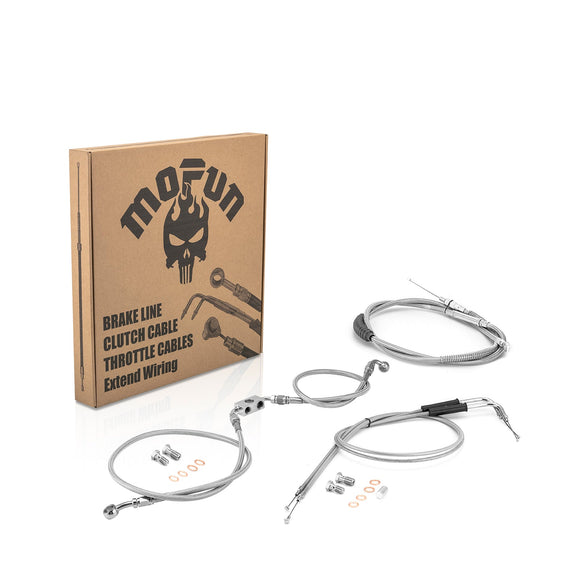

【Package Includes】
1x Clutch cable
1x Throttle and Idle cable
1x ABS hydraulic front brake line
1x junction block W/mounting hole & AN#4
Includes necessary mounting hardware
