Non-ABS Hydraulic Brake Line&Clutch Cable&Throttle Cable Kit for Harley Sportster 883 Iron/Custom XL (for 16"-18" Handlebar w/Non-ABS)

Fitment List

for 16"-18" Handlebar (Non-ABS)

• Compatible with Sportster XL883 2004-2009

• Compatible with Sportster Superlow XL883L 2011-2013

• Compatible with Sportster Forty-Eight XL1200X 2010-2013

• Compatible with Sportster 883 Iron XL883N 2009-2013

• Compatible with Sportster Custom XL 1200C 2009-2013

• Compatible with Sportster Custom (EFI) XL 1200C  2007-2008

• Compatible with Sportster Custom XL 883C 2009

• Compatible with Sportster Custom (EFI) XL 883C 2007-2008

• Compatible with Sportster Low XL 1200L 2009-2011

• Compatible with Sportster Low (EFI) XL 1200L 2007-2008

• Compatible with Sportster Low - XL 883L 2009-2010

• Compatible with Sportster Low (EFI) XL 883L 2007-2008

• Compatible with Sportster Nightster XL 1200N 2009-2012

• Compatible with Sportster Nightster (EFI) XL 1200N 2007-2008

Note: Not fit for Sportster 883R/1200R

Specifications:

• Item: Extended Length Non-ABS Hydraulic Front Brake Line and Clutch Cable Kit

• Used On: 16"-18" Handlebar (Non-ABS)

• Color: Chrome / Black

• Inner tube material:

• Brake line Inner Tube Material: Teflon (PTFE, Temperature resistance from -70°C to 260°C)

• Throttle cable and Clutch cable Inner Tube Material: Steel inner conduit, Inner PE liner

• Outer tube material: Polished Stainless steel preparation

• Outer transparent tube material: PVC

• Condition: Aftermarket Brand New

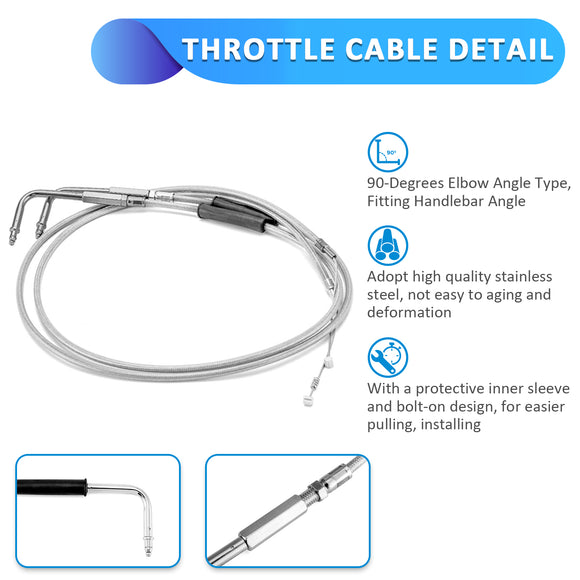

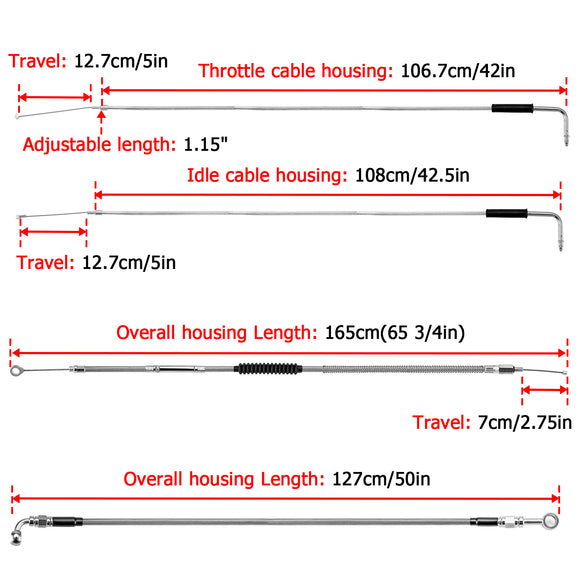

• Extended Length Throttle and Idle Cable Kit

• Throttle cable: 42" (1067mm)

• Idle cable: 42.5" (1080mm)

• Travel: 5" (127mm)

• Adjustable length: 1.15"

• Replace for Part Number of Throttle Cable: 56884-07, 5634301, 5634396, 5635696A, 5642106, 5643298

• Replace for Part Number of Idle Cable: 56885-07, 5634201, 5634296, 5635596A, 5641506, 5643398

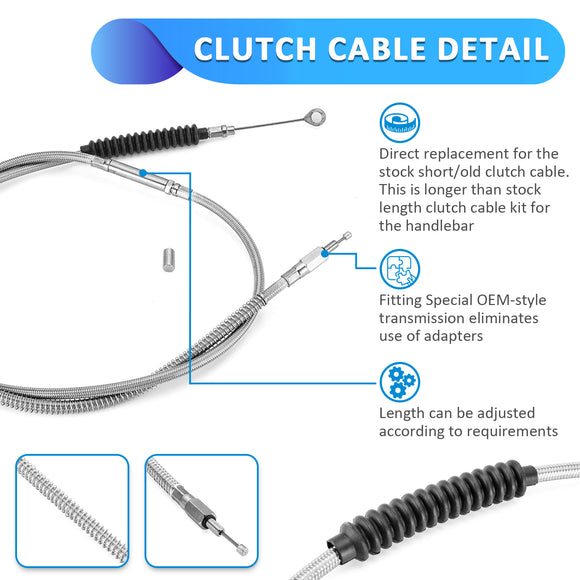

Extended Length Clutch Cable Specifications
Overall housing Length: 65 3/4" (1650mm)
Travel Length: 2.75" (69.85 mm)
Replace for Clutch Cable Number: #3861986A, 3866300, 38699-04

Non-ABS Hydraulic Front Brake line Specifications
Overall housing Length: 50" (1270mm)
Replace for Hydraulic Brake Line Number: #46400-04, 45449-04C, 46400-04, 41800172

Features:

【Compatibility】
Compatible with 2004-2013 Harley sportster with Non-ABS 16"-18" Handlebar.Please check the detailed fitment list before purchasing.

【Convenience】
This line kit is designed to save you time and hassle when installing handlebar cables and lines,including the Throttle Cable, clutch and Hydraulic brake Line as well as the necessary hardware.

【Premium Quality】

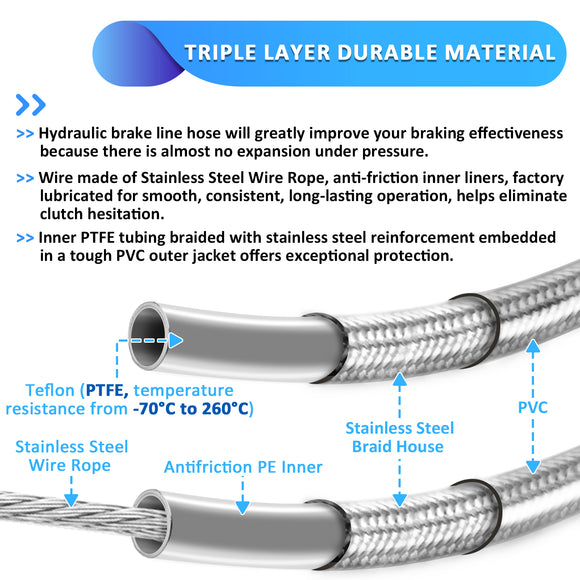

Inner PTFE tubing or PE tubing braided with stainless steel reinforcement embedded in a tough PVC outer protector offers exceptional protection. The PTFE material is resistant to temperatures ranging from -70℃ to 260℃. Our kit offers a longer lifespan and increased durability, ensuring reliable performance for years to come.

【Better Work】
The hydraulic line hose will greatly improve your effectiveness because there is almost no expansion under pressure, less soft than rubber hoses at all times. This advantage reduces braking distances and increases the efficiency of the calipers;Easier and more responsive clutch squeezing

【Easy To Use】

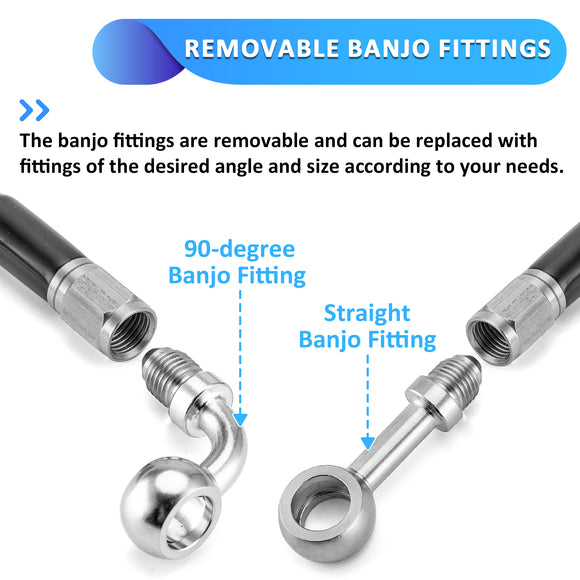

Direct replacement for the stock short/old line. The banjo fittings are removable and can be replaced with fittings of the desired angle and size according to your needs. Brazed manifold construction eliminates leaks, alignment problems, and unattractive threaded connections for a sleek appearance.
Note: Some models might need a longer cable kit than the usual length. That's the cause of how their cables need to wind around or other needs. Please check the detailed fitment list and product size before purchasing.

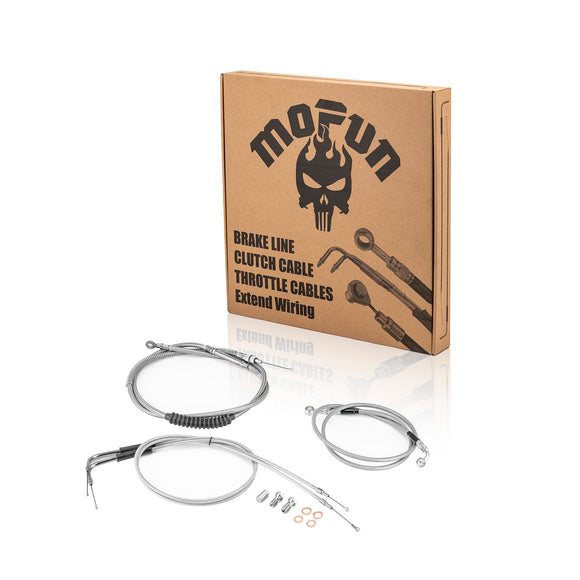

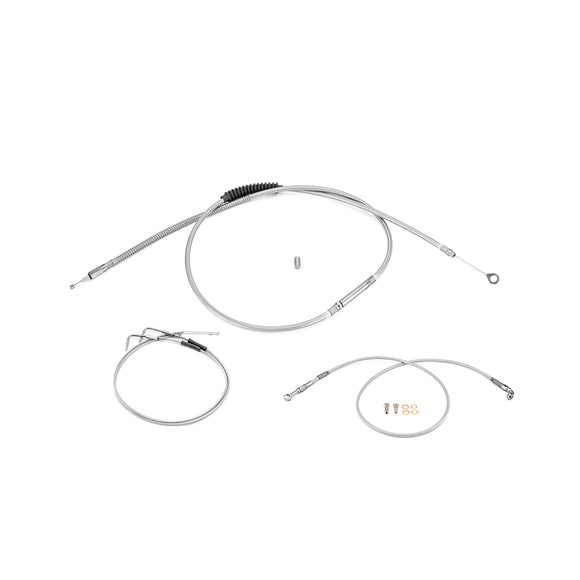

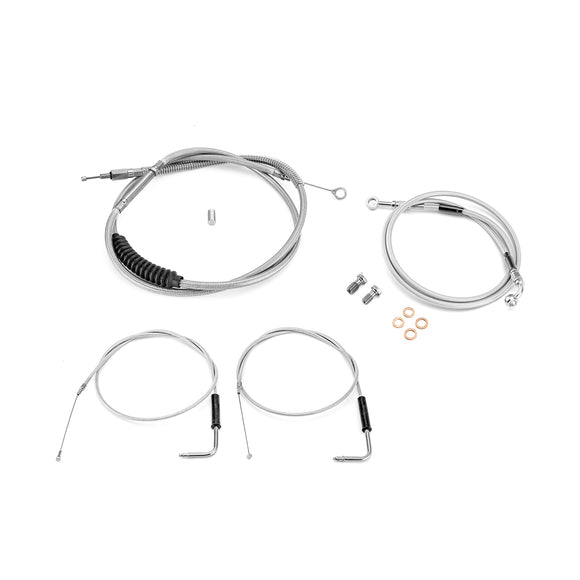

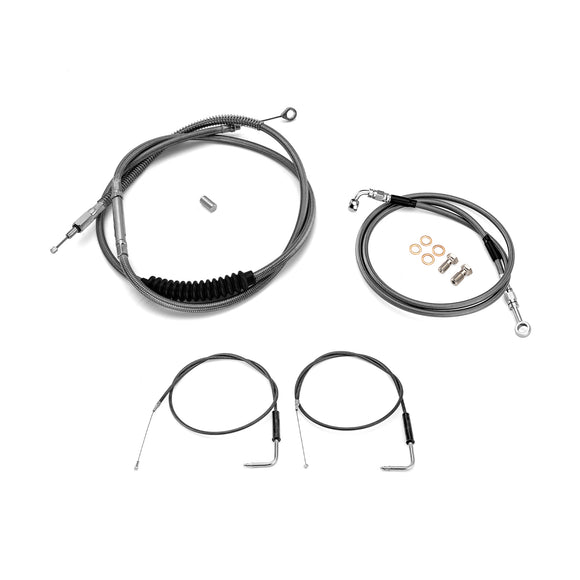

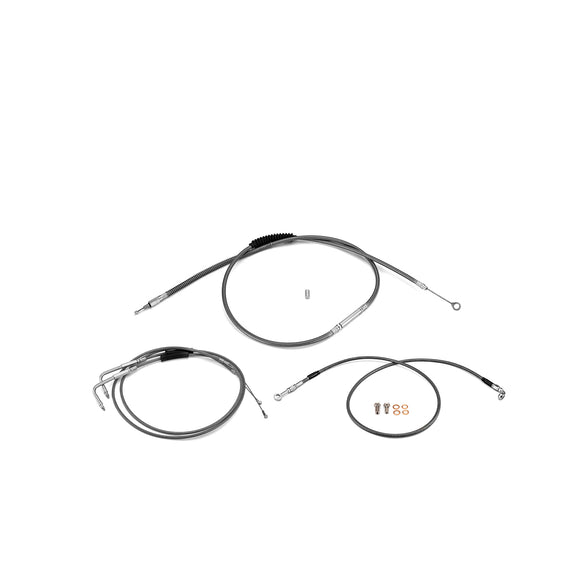

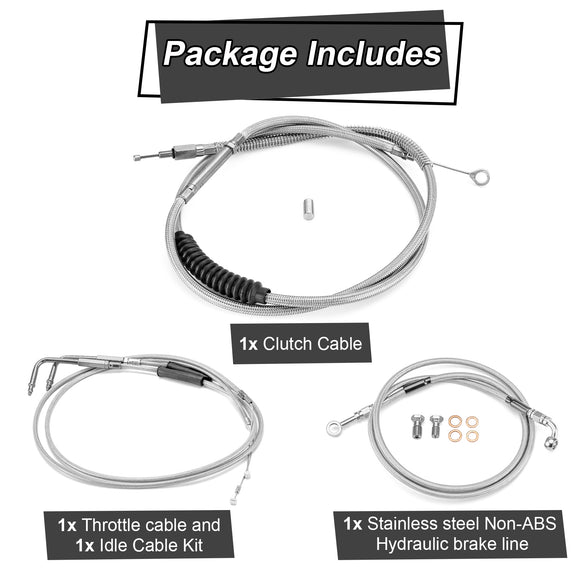

【Package Includes】
1x Clutch Cable
1x throttle cable; 1x Idle cable;
1x stainless steel Non-ABS Hydraulic brake line
2x Ferrules
1x pivot pin
2x banjo Bolt
1x Rubber boot
1x 90-degree banjo fitting
1x straight banjo fitting
4x Copper crush washers
Includes necessary mounting hardware.
If you have any questions, please feel free to contact us by email, and we will provide you with a satisfactory solution.
