Fitment:
- 2014-2024 Touring models (except FLHTKL, FLHTCUL, '23-later FLHXSE, FLTRXSE and '24-later FLHX, FLTRX and '24 FLTRXSTSE).
Specifications:

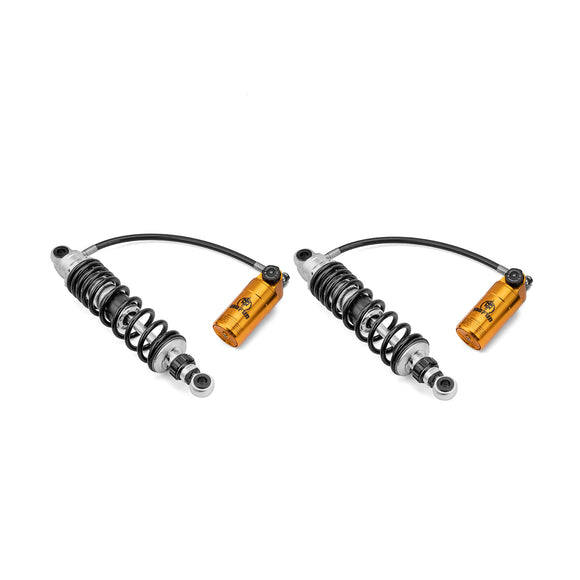

- Item: Remote Reservoir Rear Shocks
- Material: Steel and 6061 Aluminum
- Logo: MOFUN
- Spring Color: Gloss Black
- Shock-absorbing Color: Silver Oxide
- Exposed Remote Reservoirs: Oxidized Gold/Black/Silver
- Eye to eye Length: Standard 13"(330mm) Height with +5 mm of length adjustment
- Shock Absorber: 0.55"(14mm)
- Piston Aiameter: 1.6"(42mm)
- Spring Thickness: 0.3"(7.6mm)
Adjustment:

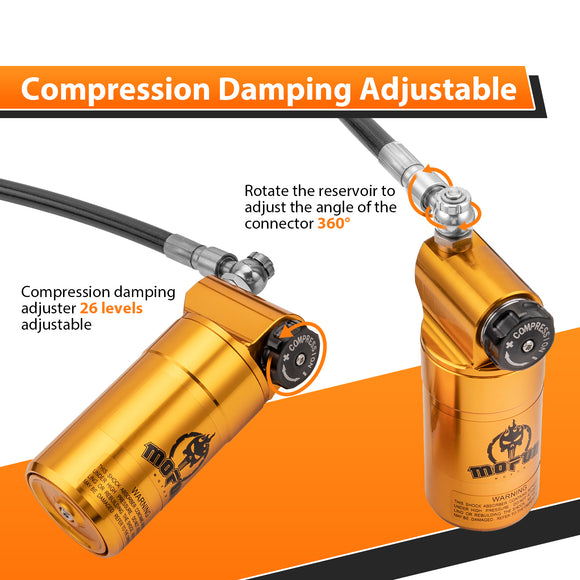

- Compression Damping Adjuster: 26 level
- Rebound Damping Adjuster: 43 level

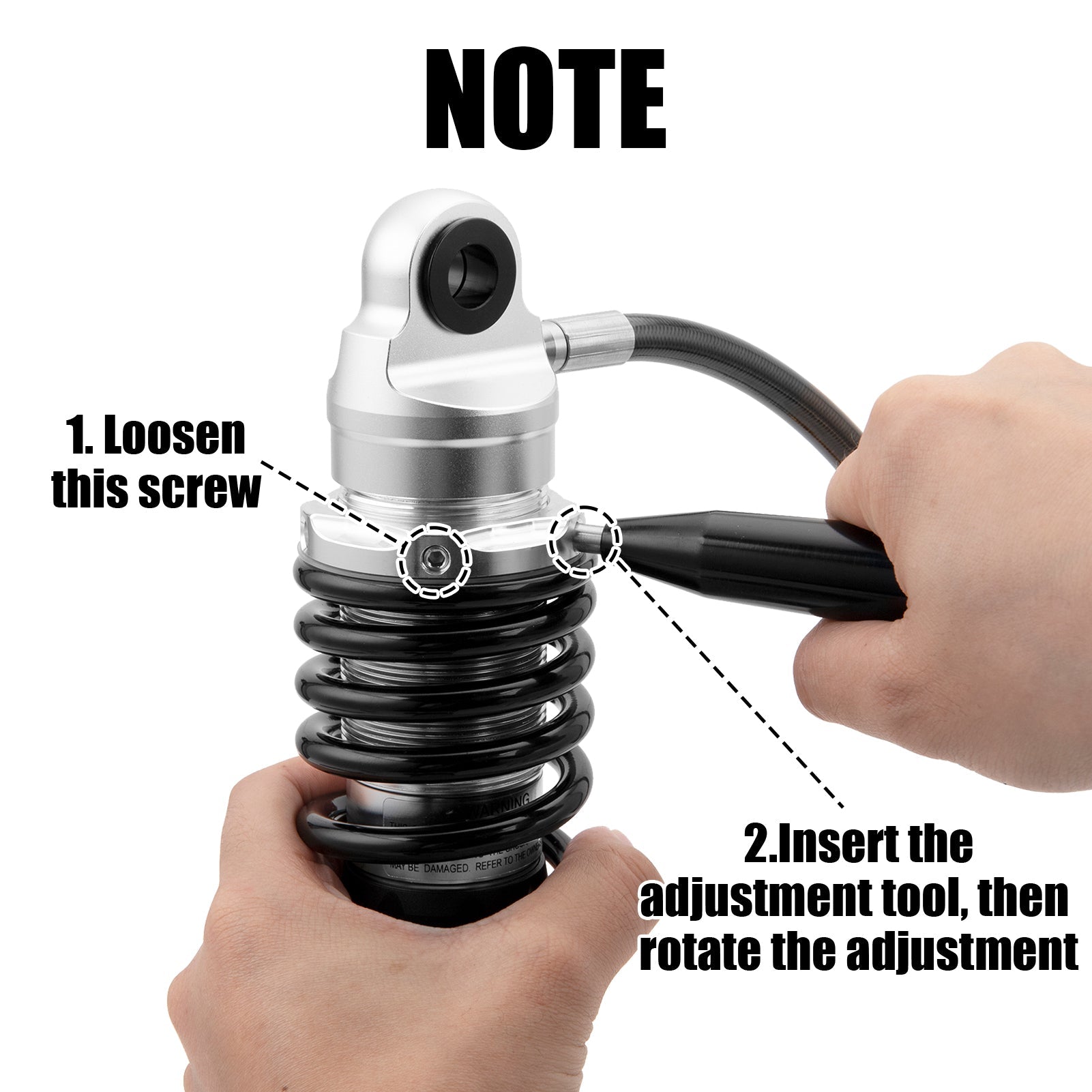

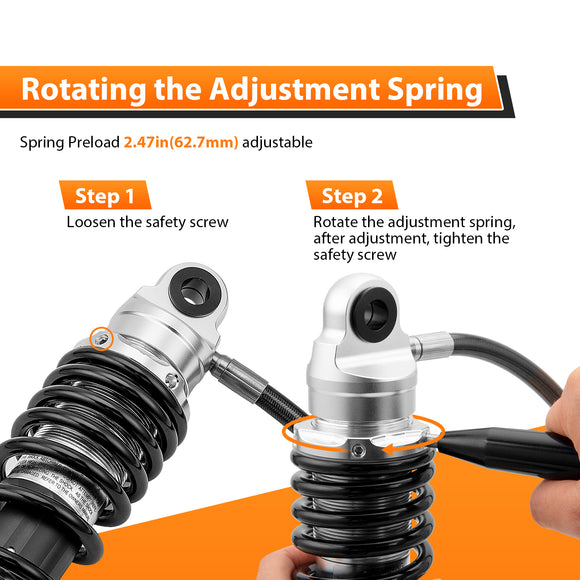

- Spring Preload Adjuster: 2.47"(62.7mm)
Features:
【Compatibility】
This Remote Reservoir Rear Shocks is compatible with 2014-2024 Touring models except FLHTKL, FLHTCUL, '23-later FLHXSE, FLTRXSE and '24-later FLHX, FLTRX and '24 FLTRXSTSE.

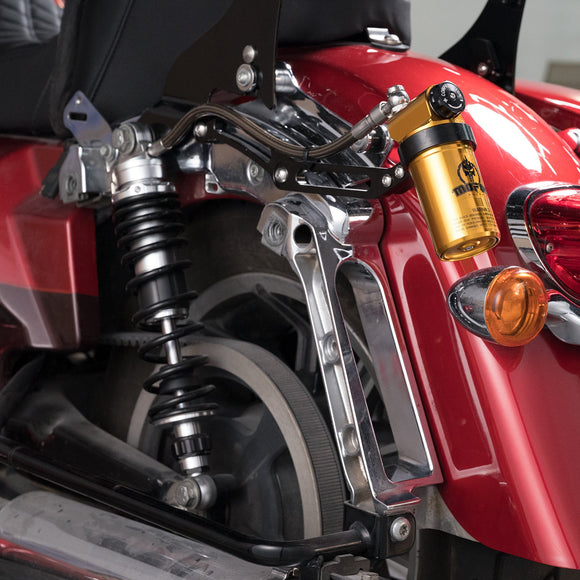

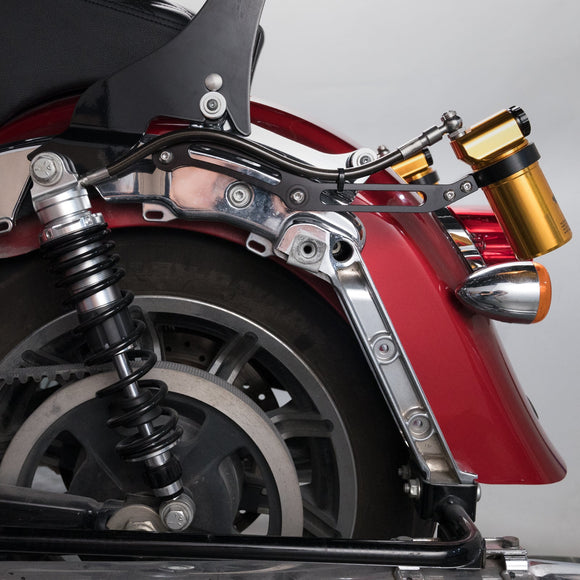

Get a perfect factory fit. Reservoir brackets are designed to accommodate all factory Two-Up accessories.
Please check the detailed fitment list before purchasing.
【High-performance Style】

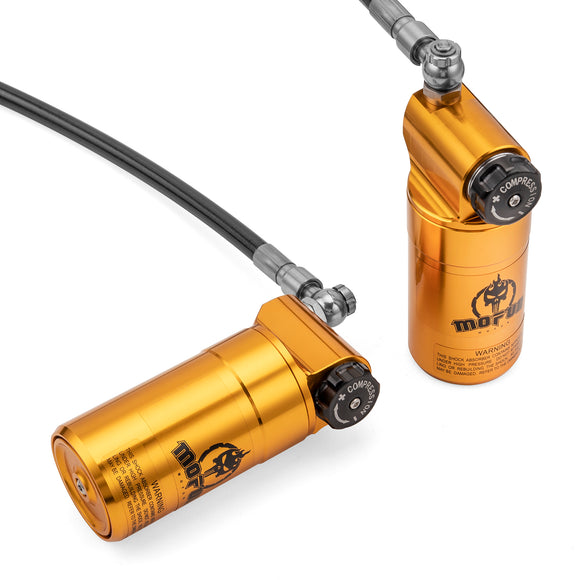

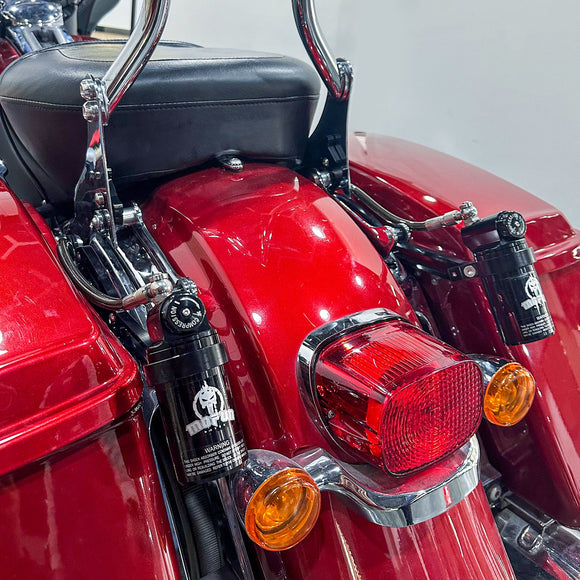

Exposed remote reservoirs for the aggressive performance bagger rider in mind.
Exposed remote reservoirs line made of Inner PTFE tubing braided with stainless steel reinforcement embedded in a tough PVC outer protector (The PTFE material is resistant to temperatures ranging from -70℃ to 260℃)
High-pressure nitrogen filling design resists heat fading for achieving smooth performance. Progressive rate springs stiffen quickly for improved control when you pick up the pace. These shocks perform great and add a performance style with a remote reservoir and exposed adjusters.
【Precise Regulation】
Experience the perfect ride with 26 levels of adjustable compression damping and 43 levels of rebound damping. These mono tube remote reservoir shocks are completely adjustable to match your riding style. Set the sag with the adjustable preload then fine tune the response with adjustable compression and rebound damping. Preload setting on both shocks allows suspension adjustment based on rider, passenger, and gear weight for optimal performance.
Enhanced stability and smoothness of ride, reducing the impact of bumps and uneven terrain.
【Easy Installation】
Remote Reservoir Rear Shocks is designed for hassle-free installation. No tools required for compression and rebound damping adjustments so changes can be made quickly and easily, Comes with instructions and Suspension Preload Table

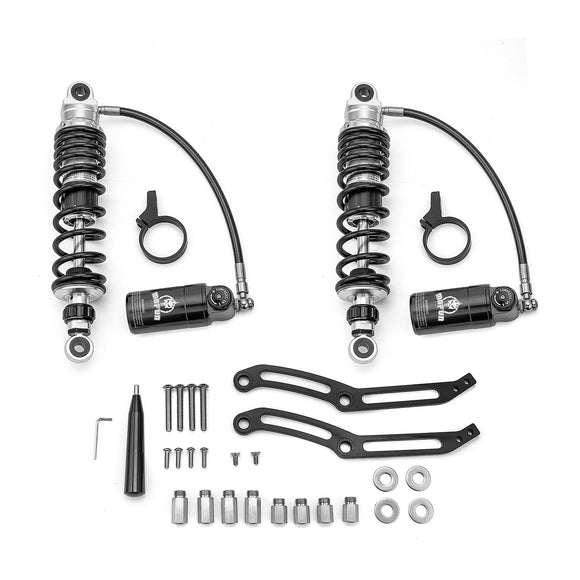

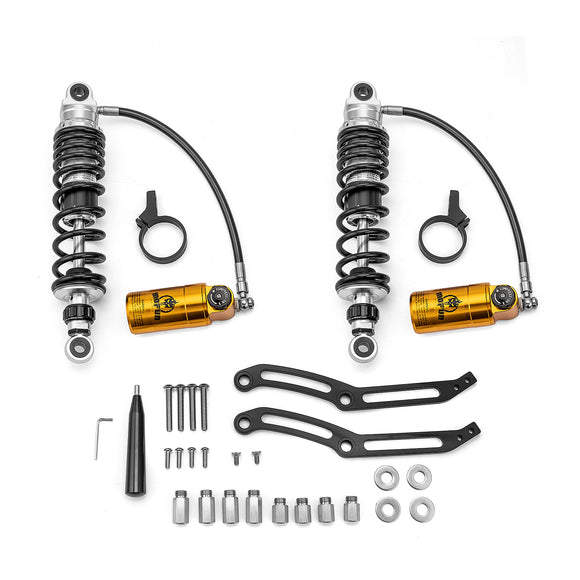

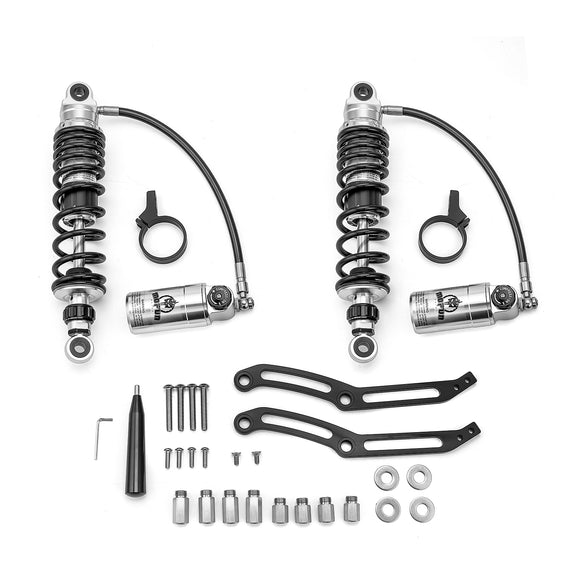

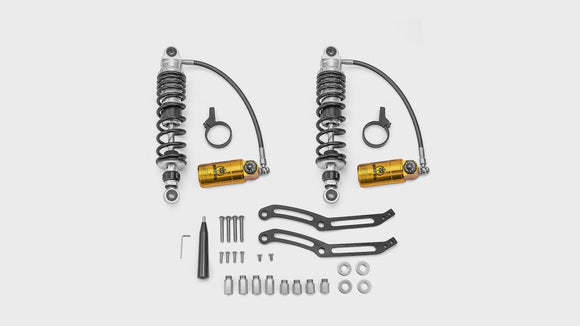

【Package Including】
2x Remote Reservoir Rear Shocks
2x Clamp bracket4x Screw, short head
2x Mounting bracket
4x Screw, long
4x Spacer, long(if docking is not installed, use long screws.)
4x Spacer, short(if docking is installed, use short screws.)
2x Screw, flat head
4x Washer
1x billet aluminum preload adjustment tool
